Simple operation and safe & reliable performance. Alkali is added once for long-term use; only distilled water needs to be refilled during daily operation, and hydrogen production starts simply by turning on the power switch.
All gas pipelines are made of stainless steel (electropolished and ultrasonically cleaned), which effectively improves gas quality and ensures a stable chromatographic baseline.
Equipped with a unique anti-backflow device to completely eliminate liquid backflow inside the instrument.
A separate oversized liquid storage tank effectively lowers the operating temperature of electrolyte and extends the water refilling interval.
Horizontal cylindrical electrolytic cell with imported special precious metal as electrolysis material. It significantly boosts electrolysis efficiency, maintains constant cell temperature, and greatly prolongs the service life of the electrolytic cell.
He instrument is fitted with automatic constant voltage and constant current modules to deliver stable output flow. An automatic tracking unit enables fully automatic adjustment of hydrogen flow according to actual consumption. It maintains stable hydrogen purity without attenuation and supports continuous operation.
Stainless steel drying tubes are adopted to avoid damage caused by material aging and eliminate abrasion risks from repeated disassembly.
A vent valve is installed. No disassembly of the hydrogen outlet for pressure relief is required when replacing desiccant; simply open the vent valve for fast and convenient operation.

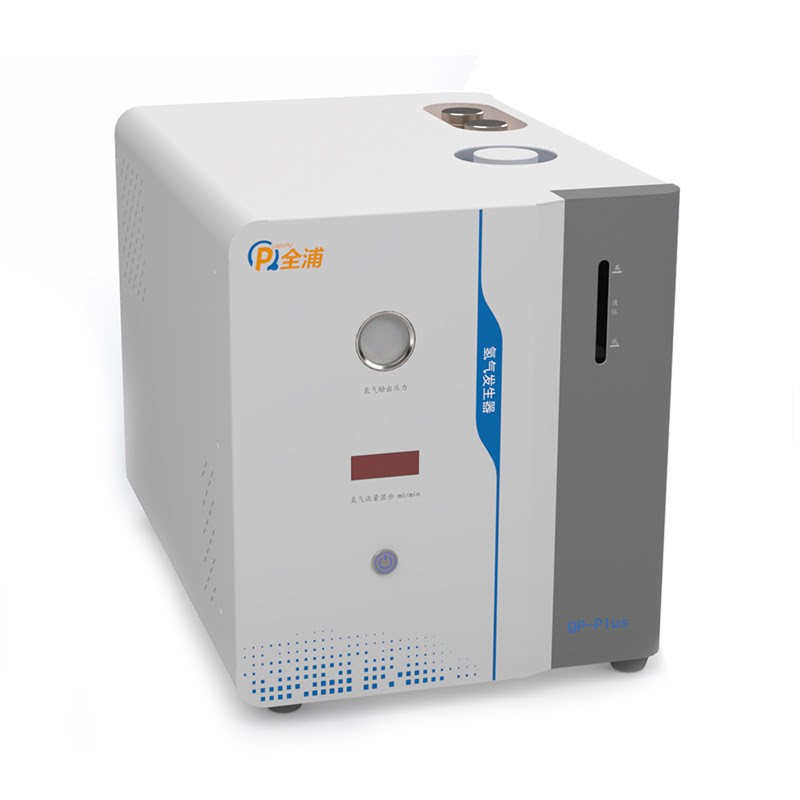

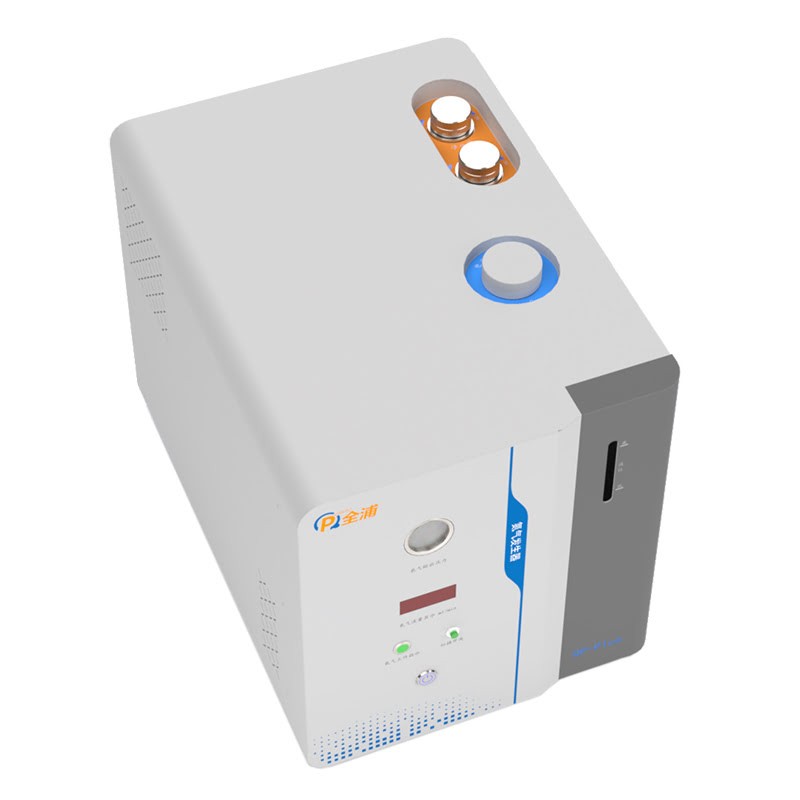

| Instrument model QP-Plus | H3 | H5 | H1L |
| Maximum output flow | 300 ml/min | 500 ml/min | 1000 ml/min |
| Hydrogen purity | 99.999% | ||
| Output pressure | 0-0.5 MPa (factory setting 0.4 MPa) | ||
| Export specifications | M8×1, aperture φ3.3 | ||
| Drying method | Adsorption drying/silica gel | ||
| Working power supply | 220V/50HZ | ||
| Environmental conditions | Ambient temperature: 0-35℃; Relative humidity: ≤85%; No large amounts of dust or corrosive gases; Good ventilation; No direct sunlight. | ||
| Maximum power | 150W | 250W | 500W |
| Dimensions: Length × Width × Height (mm) | 400mm*220mm*385mm | 550mm*375mm*425mm | |
| Weight | 14KG | 22KG | |
Combustion hydrogen for FID, FPD, NPD detectors of Gas Chromatograph (GC)
High-purity carrier & auxiliary hydrogen for GC-MS
Gas supply for headspace samplers
Flame fuel gas for Atomic Absorption Spectrometer (AAS)
Auxiliary gas for Inductively Coupled Plasma (ICP)
High-purity hydrogen supply for various elemental analyzers
Catalytic hydrogenation and reduction experiments
Preparation experiments of new and nanomaterials
Teaching & testing experiments for environmental and food majors
Detection of pollutants in water and soil
Pesticide residue analysis of pharmaceuticals and herbal medicines
Trace impurity testing of medical devices
