Polished stainless steel gas lines
Durable stainless steel drying tubes
Quick vent valve for maintenance
HL-A maintenance-free air purification
316 stainless steel auto-drain tank
Multi-stage safety protection system
Oil-free compression design
Simple hydrogen generation operation
Effective electrolyte anti-backflow
High-efficiency precious metal cell
Auto flow tracking stabilization
Dual-cathode nitrogen electrolysis
Power-off automatic gas cutof
All gas circuits of the instrument adopt stainless steel pipes processed by electropolishing and ultrasonic cleaning, which effectively improves air quality.
Stainless steel drying tubes are used to avoid damage caused by aging and eliminate the risk of abrasion during disassembly.
Equipped with a vent valve. No disassembly of the gas outlet for pressure relief is required when replacing desiccants; simply open the vent valve for quick and easy operation.
Equipped with HL-A device, it automatically adsorbs and removes hydrocarbons, esters, oil and other impurities from air to upgrade air quality, maintenance-free.
The air storage tank is made of 316 stainless steel with automatic drainage function, which avoids yellow rust water discharge and laboratory contamination.
Independent compression chamber with exclusive sound insulation and shock absorption structure, realizing silent operation and zero resonance.
Dual filters, three-stage purification and two-stage voltage stabilization deliver high precision output pressure.
Complete safety protection configuration: safety valve together with high-precision and high-sensitivity pressure controller.
Built-in overcurrent protector prevents compressor damage from overload and cuts maintenance costs.
Oil-free compressor is applied to fundamentally block oil molecules from entering the gas circuit system.
Simple to operate, safe and reliable. Only one-time alkali filling is required; for daily use, merely replenish distilled water, and hydrogen production starts once the power is turned on.
A unique anti-backflow device is installed to completely prevent electrolyte backflow inside the instrument.
The separate extra-large liquid storage tank effectively lowers the operating temperature of electrolyte and extends the interval between water refills.
Horizontal barrel electrolytic cell adopts imported special precious metals as electrolytic materials, which greatly boosts electrolysis efficiency, stabilizes cell temperature and significantly prolongs the service life of the electrolytic cell.
The instrument is equipped with automatic constant voltage and constant current modules to ensure stable output flow rate. Built-in automatic tracking system can fully automatically adjust hydrogen flow according to actual consumption. It maintains constant gas purity and supports continuous long-time operation.
Self-developed dual-cathode stainless steel electrolytic separation cell enables smooth circulation of electrolyte, realizing simultaneous nitrogen production and oxygen exhaust through electrolysis. Featuring large electrolysis area and low cell temperature, it delivers high gas output and higher nitrogen purity.
The instrument is equipped with two automatic functions: automatic gas circuit cutoff upon power failure, and automatic gas supply switching after purification completion.
Fitted with voltage and current stabilizing units for stable output flow. An automatic tracking unit is adopted to fully automatically adjust nitrogen flow based on actual consumption. The nitrogen purity remains stable without attenuation, supporting continuous operation.
A unique anti-backflow device is installed to completely avoid electrolyte backflow inside the instrument.

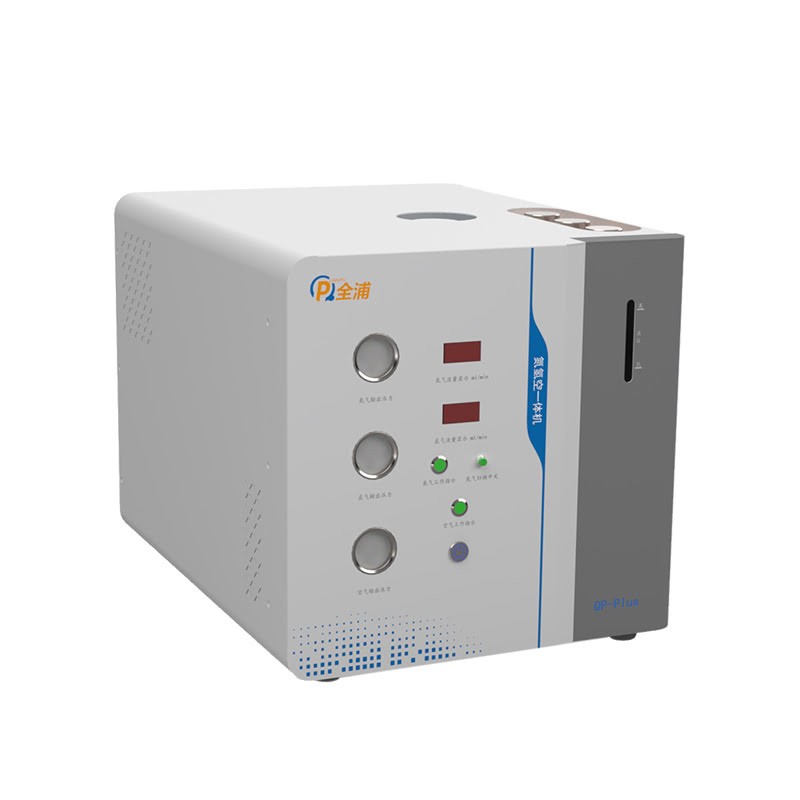

| Instrument model QP-Plus | T3L | T5L |
| Maximum output flow rate of hydrogen | 300 ml/min | 500 ml/min |
| Hydrogen output pressure | 0.4MPa | |
| Hydrogen purity | 99.999% | |
| Maximum air output flow | 3000ml/min | 5000 ml/min |
| Air output pressure | 0.4MPa | |
| Air quality | Oil-free, dry, three-stage purified clean gas | |
| Air particulate matter | 0.01um | |
| Maximum nitrogen output flow rate | 300 ml/min | 500 ml/min |
| Nitrogen output pressure | 0.4MPa | |
| Nitrogen purity | 99.999% | |
| Pressure stability accuracy | <0.001 Mpa | |
| Export specifications | M8×1, aperture φ3.3 | |
| Drying method | Adsorption drying/silica gel | |
| Noise | < 45db | |
| Working power supply | 220V/50HZ | |
| Environmental conditions | Ambient temperature: 0-35℃; Relative humidity: ≤85%. There is no large amount of dust or corrosive gases, and the area is well-ventilated and free from direct sunlight. | |
| Maximum power | 580W | 700W |
| Dimensions: Length × Width × Height (mm) | 620mm*445mm*450mm | |
| Weight | 50KG | |
Complete gas supply for GC FID, FPD, NPD detectors: nitrogen as carrier gas, hydrogen as fuel gas, zero air as supporting gas
Auxiliary gas for GC-MS trace organic analysis
Stable clean gas source for headspace samplers and purge & trap devices
Nebulizing, curtain, sheath and electrospray gas for all brands of LC-MS instruments
Purge and shielding gas for NMR, AAS and thermal analyzers (TGA/DSC) Supporting gas for ELSD, CAD and corona aerosol detectors
Online VOCs continuous monitoring of ambient air and industrial flue
Gas Trace organic pollutant detection for water, soil and waste gas
Mobile environmental monitoring lab integrated gas supply
